3Dresyn OD FDB Flexible Denture Base in natural gingiva color

SKU: P20150

Color: Pink Gingiva color
Size: 1000 grams
Consult us for recommended heating units
Free samples of Fine Tuner FT1 & LB1 will be sent if necessary for adjusting speed and resolution
The curing rate table provides the thickness of the chosen 3D resin cured at a light power similar to your DLP/LCD printer at 405 nm at 5, 10, 15, 20, 25, 50, 75, and 100 seconds
Powered by Globo Options App
Price:
Sale price€350.00

Shipping calculated at checkout

 More payment options

Description

3Dresyn OD FDB Flexible Denture Base in Gingiva color has these features and benefits:

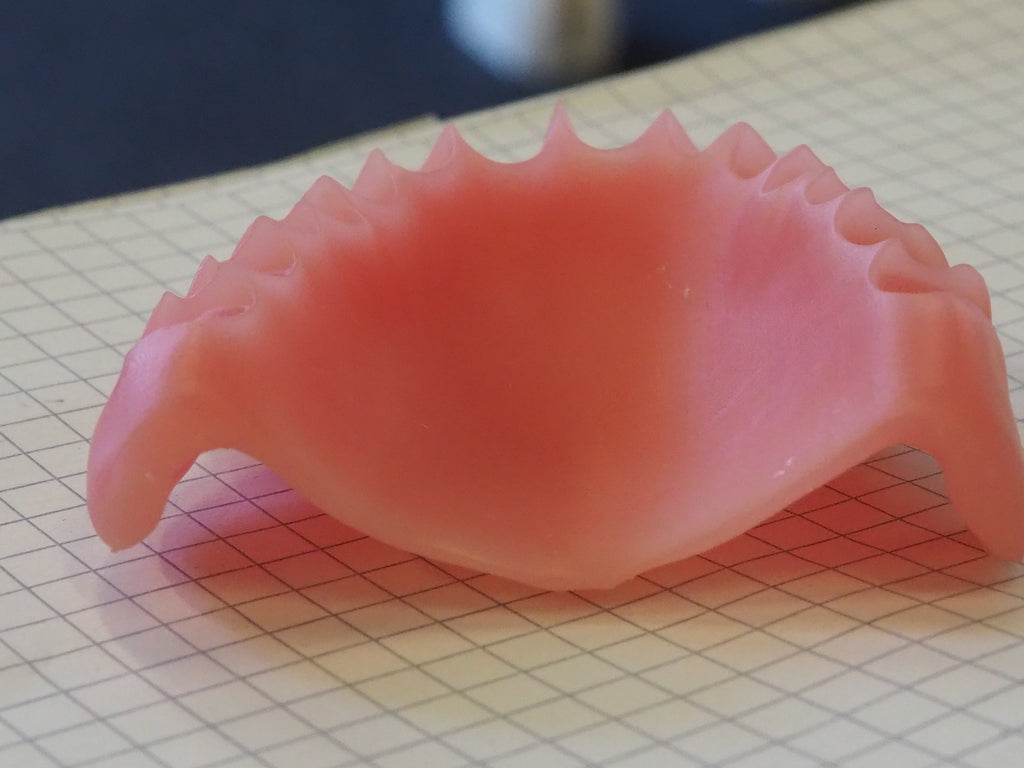

  • ideal for printing durable flexible partial removable dentures in 3 natural gingiva shades
  • based on 4D Shape Memory Polymers SMP´s, with excellent shape memory with temperature, recovering their shape upon heating
  • superior performance properties without bacteria / fungus accumulation
  • 100% biocompatible
  • ultra pure and safe, non cytotoxic
  • designed for printing it at: 20-30ºC
  • choose LV version for a relatively Low Viscosity (<5000-6000 mPas at 25ºC) for printing without heated printers or below 25ºC
  • choose HV version for relatively High Viscosity (<8000-9000 mPas  at 25ºC)  for printing with heated printers or above 25ºC, for overall improved durability  and mechanical properties
  • available in two versions: rigid and flexible versions for printing flexible denture bases
    • rigid version is similar to nylon / polyamide PA 12 Valplast
    • rigid version: ideal for <1.5 mm
    • flexible version is similar to rigid thermoplastic urethane TPU
    • flexible version: ideal for >1.5 mm
  • Shore hardness D60-70
  • high flexural strength <40 MPa
  • Young´s modulus 750-1250 MPa
    • rigid version closer to 1250 MPa for thickness <1.5 mm
    • flexible version closer to 750 MPa for  thickness >1.5 mm
  • high tensile strength <40 MPa
  • <10% stress relaxation after 1 week at 2, 10 and 20 MPa initial stress
  • elongation <30%
  • high impact and shattering resistance (Notched Izod <70 J/m)
  • high resolution up to 20 micron
  • very low shrinkage
  • organo tin free
  • increased durability of the resin tank
  • water solubility: ≤ 1,6 µg/mm3
  • hydrophobic, ultra low water sorption ULWA≤ 32 µg/mm3
  • printable by SLA, DLP & LCD 3D printers even at low room temperature <20ºC
  • fully compliant with the Quality requirements of FDA, ISO 20795, 13485 & 10993
