Functional SLA, DLP, LCD 3Dresyns for printing enginering materials.
Typical properties of our functional engineering 3Dresyns:
|
3Dresyn |
Acronym |
Tg (ºC) |
Shore hardness |
Flexural strength (MPa) |
% Elongation |
Young´s modulus (MPa) |
Tensile strength (MPa) |
|
Polyetheretherketone-like |
110-120 |
D85-90 |
120-140 |
<3 |
2000-3000 |
>50 |
|
|
Acrylonitrile Butadiene Styrene like |
>60 |
D70-80 |
<80 |
<5 |
1000-2000 |
<50 |
|
|
Polyoxymethylene like |
>90 |
D80-85 |
<80-90 |
<25 |
2500-3000 |
<50 |
|
|
High Density Polyethylene like |
<25 |
D60 |
<30 |
<100 |
<800 |
<25 |
|
|
High Impact Polystyrene like |
>25 |
D60 |
<65 |
<30 |
c. 2000 |
<35 |
|
|
Low Density Polyethylene |
<25 |
D40-50 |
<20 |
>100 |
<300 |
<20 |
|
|
Nylon or polyamide like |
>35 |
D70 |
<40 |
<40 |
<1200 |
<40 |
|
|
Polycarbonate like |
>45 |
D70 |
<55 |
<40 |
1000-1400 |
<55 |
|
|
Thermoplastic Urethane like |
c.25 |
D60-70 |
<40 |
<30-50 |
<900 |
<40 |
|
|
Polyethylene terephthalate like |
>35 |
D60-70 |
<50 |
<40-60 |
<1000 |
<30 |
|
|
Polymethylmethacrylate like |
>130 |
D85-90 |
80-100 |
<6 |
2700-3300 |
<40 |
|
|
Polypropylene like |
<25 |
D70 |
<30 |
<80 |
<1000 |
<30 |
|
|
Sinterable Polyimide resin |
c.340 |
D90 |
<140 |
<10 |
c. 3600 |
<140 |
Note: mechanical properties of 3D resins depend significantly on the printing and postprocessing specifications. The properties of thermoplastic 3D resins depend significantly on the temperature at which the testings are undertaken. The higher the temperature the higher the flexibility and other temperature related properties.
Our functional engineering resins contain bioplastics and have improved biocompatibility and biodegradation than conventional plastics and alternative 3D resins:
- Features & Benefits of our functional SLA, DLP and LCD 3Dresyns for engineering
- Frequently Asked Questions about 3D printed biomedical and dental resins

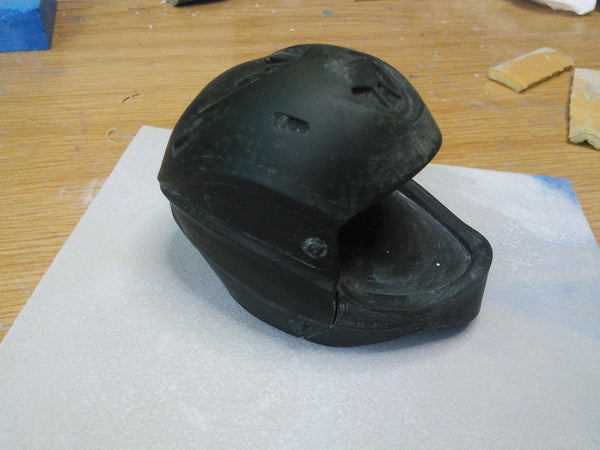

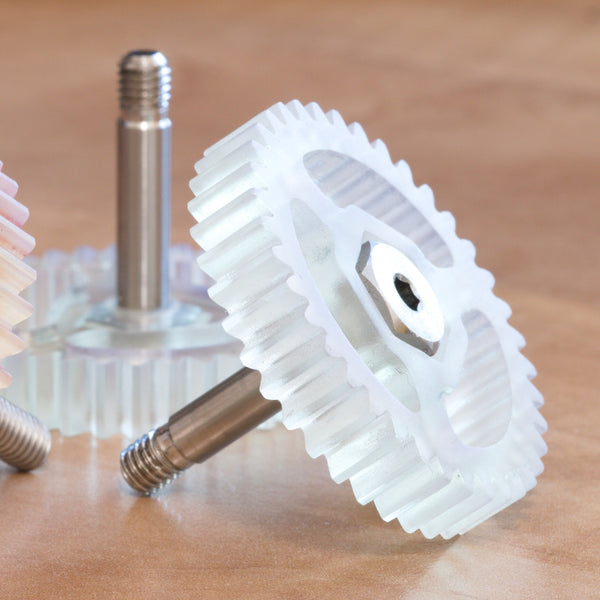

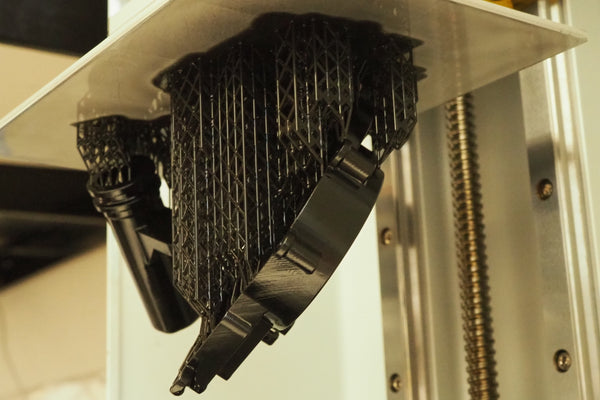

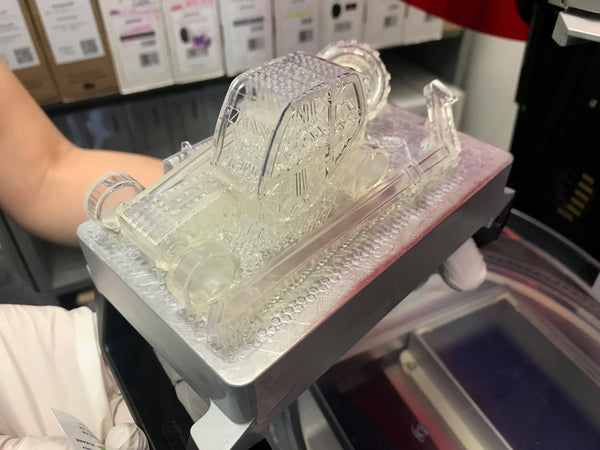

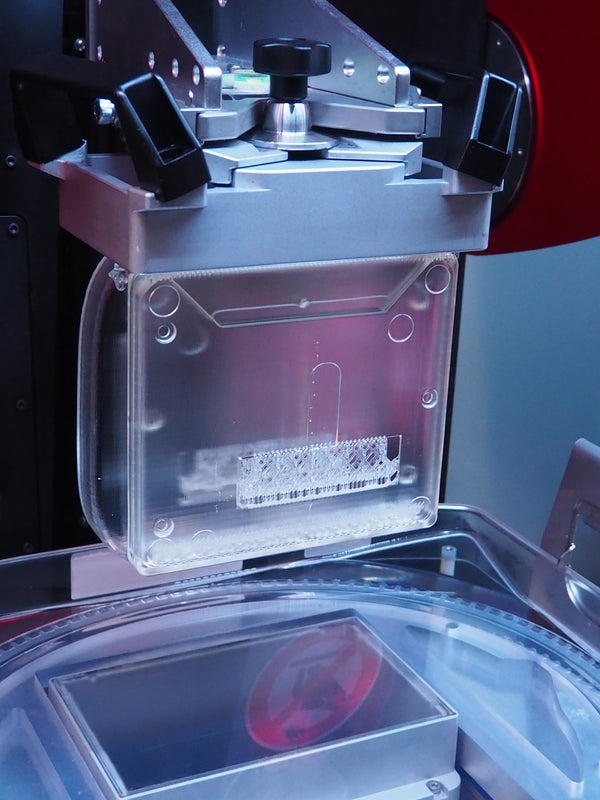

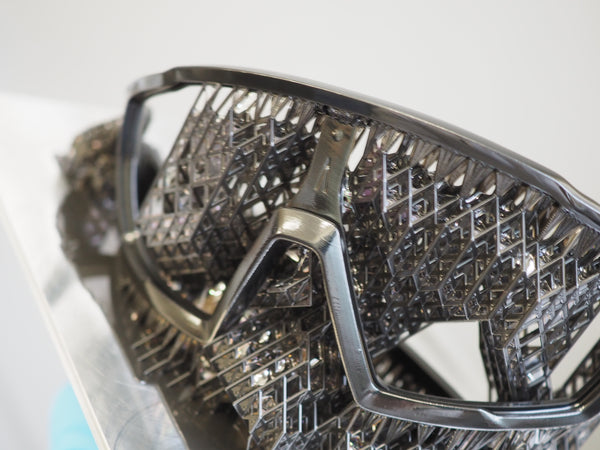

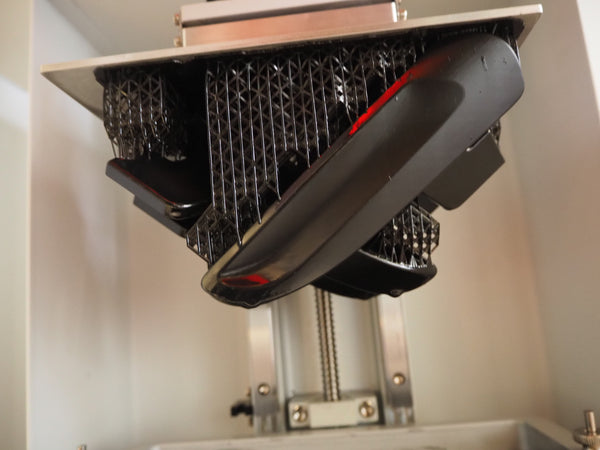

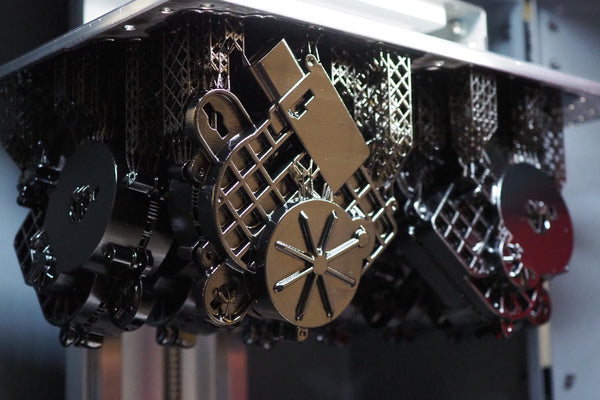

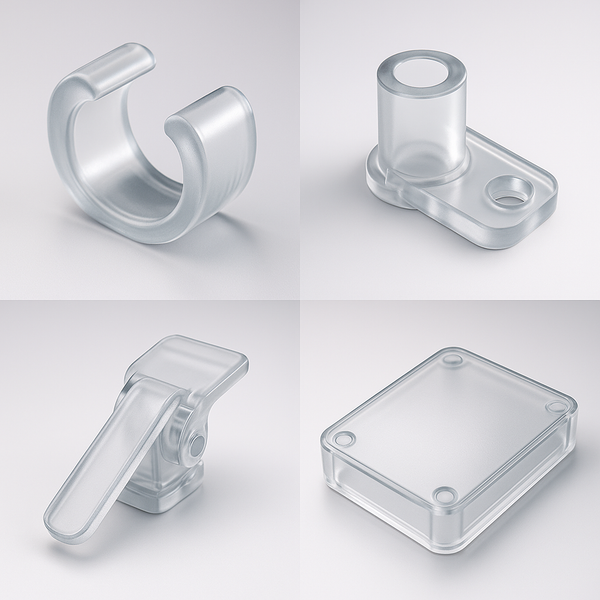

- Pictures of functional 3D printed resins
- Videos of functional 3D printed resins
Discover our Functional Packs!
